Natural Draft Cooling Towers

A natural draft cooling tower is a large structure typically used in power plants and other industrial processes. It used to dissipate waste heat into the atmosphere. It operates on the principle of natural convection, where the warm air rises. Also, it’s replaced by cooler air from the surrounding environment.

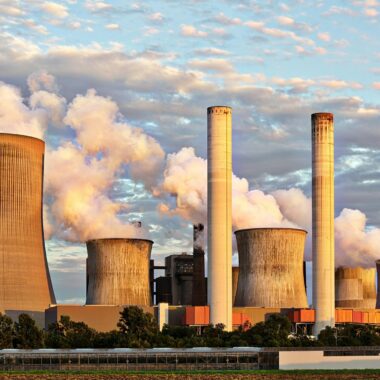

Natural Draft Cooling Tower

Working Principle of Natural Draft Cooling Tower

Basically, The tower consists of a tall cylindrical or hyperboloid-shaped structure made of reinforced concrete. Also, with a large opening at the bottom to allow hot water from the industrial process to flow in. The hot water is then sprayed from nozzles onto the top of the tower. where it comes in contact with a flow of cool, ambient air that enters through the base of the tower.

As the hot water flows down the tower, it evaporates into the air. It makes them taking away the waste heat and leaving behind cooled water that is then recirculated back into the industrial process. The evaporated water creates a natural draft that draws the cool air into the tower. Finally, It helps to expels the warm, moist air out the top as well.

Features and Specifications

  1. Natural draft cooling towers are typically very large, with heights of up to 200 meters and diameters of up to 100 meters.
  2. They are highly efficient and cost-effective for large-scale cooling applications.
  3. But can also have a significant environmental impact due to their high water consumption and potential for drift and aerosol emissions.

Advantages of Natural Draft Cooling Tower

  1. Energy Efficiency
  2. Low Maintenance
  3. High Capacity
  4. Durability
  5. Low Operating Costs
  6. Low Noise

Natural draft cooling towers offer a cost-effective and efficient solution for large-scale cooling requirements. After all, it making them a popular choice for industrial applications.
